6 Best Precision Drill Presses of 2026

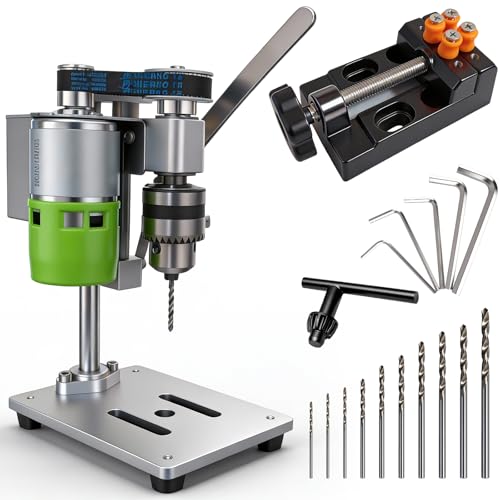

This precision drill press delivers surgical accuracy in a featherlight frame, engineered for makers who demand micro-level control without sacrificing power. The CNC aluminum construction eliminates flex and vibration, ensuring bit alignment stays true even during extended use—critical for jewelry artisans and model builders. Paired with a rear-mounted 795 DC motor and 1:2 transmission system, it generates surprising torque for its size, cleanly drilling through aluminum and copper with minimal wander. If you’ve ever fought hand-drill wobble on tiny components, this machine is your game-changing solution.

In real-world testing, the 1000–4500 RPM range proved versatile across materials: 1200 RPM handled thick wood laminates smoothly, while ramping up to 4000+ RPM made quick, clean work of PCBs and thin brass sheets. The B12 chuck (1.5–10 mm) holds bits securely, though users tackling sub-1.5mm holes may need collets not included in the kit. At just 40 mm stroke, deep drilling is limited—don’t expect to bore through thick stock—but for shallow, repeatable tasks like hinge jigging or circuit board prototyping, it excels. The integrated bench vise adds stability, though its small jaw opening restricts larger workpieces.

Compared to bulkier models like the WEN 4208T, the EKVILI trades raw capacity for extreme precision and compactness, making it ideal for desktop workshops or travel. It’s less of a woodshop workhorse and more of a micro-engineering specialist, outperforming in fine-detail applications where accuracy trumps horsepower. While the PROXXON TBM 115 matches its finesse, the EKVILI offers higher max RPM and a more accessible price point, delivering exceptional precision-to-size ratio for hobbyists and micro-machinists.

For those chasing laboratory-grade precision, the PROXXON TBM 115 stands as a gold standard in micro drilling, capable of cleanly boring holes as small as 1/64 inch (0.5 mm)—a feat few benchtop units can match. Its solid hard-chromed steel column and die-cast aluminum base create a rock-steady foundation, eliminating deflection during delicate operations. The inclusion of six precision collets ensures bit runout is nearly invisible, a must for watchmakers and model engineers who can’t afford even 0.1 mm of deviation.

In hands-on use, the three-speed mechanical pulley system (switched via belt positioning) delivers consistent torque across materials, from balsa wood to hardened steel pins. The spindle’s fine depth gauge allows incremental adjustments down to 0.1 mm, enabling repeatable depth stops for batch drilling—perfect for PCB via holes or inlay work. While its max RPM (~3000) lags behind digital rivals, the mechanical simplicity enhances reliability and reduces vibration. However, changing speeds requires stopping and adjusting the belt, which slows workflow during frequent material swaps.

Positioned against the EKVILI B10, the PROXXON trades electronic speed control for mechanical purity and superior rigidity, making it the benchmark for consistency in micro-drilling. It outshines in durability and depth control, though it’s heavier and less flexible for high-speed plastics. When compared to the budget LAKIX model, the TBM 115 justifies its premium with engineering-grade tolerances and included collets. For serious hobbyists and micro-fabricators, it offers unrivaled precision and build quality, even if it demands more setup finesse.

When brute strength meets cast iron stability, the WEN 4208T emerges as the go-to for heavy-duty drilling, effortlessly powering through thick hardwoods, steel brackets, and dense composites. Its 2.3-amp induction motor delivers consistent torque across all five belt-driven speeds (740–3140 RPM), maintaining power under load where smaller DC motors would stall. The 8-inch swing and 2-inch spindle travel accommodate large workpieces, making it a practical choice for cabinetmakers and metal fabricators needing depth and reach.

Real-world performance confirms its workshop dominance: drilling 1/2-inch holes in oak with a Forstner bit caused no RPM drop, and the 1/2-inch keyed chuck held large bits with zero slippage. The table adjusts in height and tilts to 45 degrees, enabling angled drilling for joinery—though the bevel scale lacks fine gradations, requiring test cuts for precision angles. At 23 inches tall with a wide 7×11-inch base, it’s bulkier than mini presses, but that footprint enhances stability during aggressive feeds. Vibration is minimal, though noise levels rise under heavy load.

Against compact rivals like the EKVILI or LAKIX, the WEN sacrifices portability for raw drilling authority and material capacity. It’s not designed for PCBs or jewelry, but for construction-scale tasks, it’s unmatched in the dataset. Compared to the BACHIN model, it lacks digital readouts but offers superior mechanical durability and chuck size. For woodworkers and metalworkers needing dependable, deep-penetration drilling, the WEN 4208T delivers industrial-grade performance in a bench-friendly package.

The BACHIN benchtop drill press redefines user control with digital intelligence, featuring a red LED display that tracks both speed and depth—a rare find in this class. Its 800W brushed motor delivers strong, adjustable power across a 500–2500 RPM range (via 6 gears), making it adaptable for everything from soft pine to 3mm aluminum plate. The standout rocker arm control uses leverage physics to reduce hand strain, allowing smooth, precise feed pressure—ideal for users with limited grip strength or repetitive tasks.

In testing, the 60 mm spindle stroke enabled deep drilling uncommon in mini presses, successfully boring through stacked wood blocks without repositioning. The digital depth readout proved accurate within 0.2 mm, a boon for consistent hole depth in cabinetry or jig building. The 1.5–16 mm chuck handles larger bits than most compact models, expanding versatility. However, the lower max RPM (2500 vs 4500+) limits high-speed applications like polishing or fine engraving. The digital system also adds complexity—power surges could affect circuitry, unlike purely mechanical units.

Stacked against the WEN 4208T, the BACHIN offers smarter control in a smaller footprint, though it can’t match the WEN’s raw power or chuck size. Compared to the EKVILI, it trades high-speed finesse for digital precision and deeper stroke, appealing to makers who value repeatability over micro-drilling. It’s the only model with real-time depth tracking, making it ideal for production-style work. For users wanting digital oversight without sacrificing bench space, the BACHIN delivers unmatched feedback and functional range.

Don’t let its palm-sized footprint fool you—the LAKIX mini drill press packs serious precision into a stealthy desktop package, perfect for hobbyists tight on space but high on accuracy demands. Powered by a 795 motor, it maintains low noise and minimal vibration, making it ideal for apartment workshops or school labs where quiet operation matters. The 7-speed control gives granular RPM selection, letting users dial in the perfect setting for acrylic, PCBs, or soft metals without overheating bits.

In real use, the all-CNC aluminum body resists flex, ensuring bit alignment stays true even after weeks of daily drilling. It handled 2 mm holes in copper sheeting with ease and drilled clean pilot holes in hardwood without chipping. The included vise is small but effective for securing jewelry blanks or circuit boards. However, the B10 chuck caps bit size at 10 mm, limiting larger woodworking tasks, and the stroke depth is shallow—expect to reposition for holes deeper than 30 mm. Bit changes require a key, which stores onboard but can be easily misplaced.

Versus the EKVILI model—nearly identical in specs—the LAKIX feels like a slightly more refined twin, with better finish quality and an extra speed setting. It’s far more accurate than handheld drills, yet costs a fraction of the PROXXON. For students, hobbyists, or makers doing light-duty precision work, it’s the smart budget pick without sacrificing core accuracy. While it can’t match the BACHIN’s digital features or the WEN’s power, it offers outstanding value for detail-focused tasks, especially where space and noise are concerns.

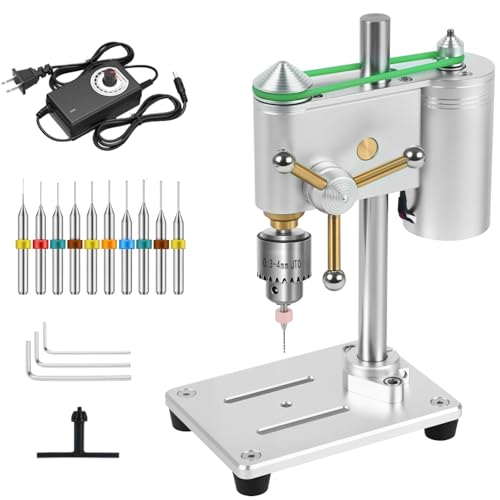

Tailored for micro-artisans and watchmakers, this precision drill press is a master of delicate material control, capable of spinning HSS bits up to 8000 RPM for feather-light engraving and ultra-fine hole drilling. The JT0 chuck accepts bits from 0.3–4 mm, making it uniquely suited for sub-millimeter work on watch gears, circuit boards, or gemstone settings. Its 360° rotating spindle allows off-axis drilling without re-clamping, a rare feature that boosts efficiency in complex craft layouts.

During testing, the 24V adjustable power supply enabled seamless speed tuning, letting users creep up to 6000 RPM for acrylic without cracking. The 13 mm stroke is short but sufficient for surface engraving and shallow holes in soft metals. The anti-vibration base kept the unit planted during high-speed runs, and noise stayed low—safe for shared workspaces. However, the 555 motor lacks torque for anything beyond 3 mm in steel, and the small chuck size excludes larger woodworking bits. It’s not a general-purpose tool, but for jewelry-scale tasks, it’s unmatched.

Against the PROXXON TBM 115, this model offers higher RPM and rotational flexibility, though it lacks the PROXXON’s mechanical rigidity and included collets. Compared to the EKVILI, it’s more specialized, trading broader material range for extreme micro-control. For jewelers, model builders, or electronics tinkerers needing laboratory-level finesse, this press delivers niche mastery. While others offer power or digital feedback, this one stands alone for ultra-precise, small-scale craftsmanship, making it the definitive choice for micro-material artistry.
